Counter type showcase
(100V)
Inverter controlled Counter type showcase Ecozo-kun
Small counter type showcase
The clear showcase to make your products well-seen by customers.
Inverter controlled counter type showcase Ecozo-kun
Reduces the electricity cost by 59%, improved design.
The first inverter controlled showcase for 2400mm-width model.
Refrigerating compartment：2℃ to 10℃
Humidity:80% average(90% or more at the peak)
Humidity:80% average(90% or more at the peak)
Improved Features Maintenance
■ 100V
| MODEL | Power |
Adjustable temperature range |
OUTSIDE DIMENSIONS(mm) | |||
|---|---|---|---|---|---|---|
| Width | Depth | Height | ||||
| R-model | TCR413-EC | POWER SUPPLY：100V・1φ AUXILIARY100V・1φ 50/60Hz |
Refrigerating |
1200 | 750 | 1150 |
| TCR513-EC | 1500 | |||||
| TCR613-EC | 1800 | |||||

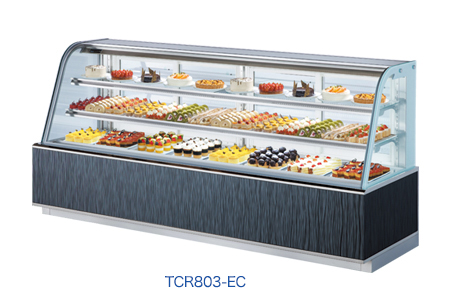

| TCR803-EC | 2400 | |||||
| Square | TCK413-EC | 1200 | 750 | 1150 | ||
| TCK513-EC | 1500 | |||||
| TCK613-EC | 1800 | |||||
| TCK803-EC | 2400 | |||||
Small counter type showcase
Refrigerator: 10℃(Natural convection) /
Refrigerator: 5℃(Forced circulation)
Refrigerator: 5℃(Forced circulation)
-
Select from two types
Natural convection model with various selections.
Forced circulation with powerful cooling. -
Eco-friendly LED installed as a standard feature
-
Various colors available (20 colors)
-
Automatic Drainage Evaporating Unit
Drain pan only for KN201 χχ
Product Lineup *This is not inverter-controlled
KN Series
| specification | model | Power | Adjustable temperature range |
OUTSIDE DIMENSIONS(mm) | |||
|---|---|---|---|---|---|---|---|
| shelf | sliding door | ||||||
| Width | Depth | Height | |||||
| 2stage | back | KN201B2 | 1φ100V 50/60Hz | refrigerator: 10℃ (Natural convection) |
700 | 500 | 1010 |
| KN301B2 | 900 | 995 | |||||
| KN401B2 | 1200 | 995 | |||||
| front | KN201F2 | 700 | 500 | 1010 | |||
| KN301F2 | 900 | 995 | |||||
| KN401F2 | 1200 | 995 | |||||
| specification | model | Power | Adjustable temperature range |
OUTSIDE DIMENSIONS(mm) | |||
|---|---|---|---|---|---|---|---|
| shelf | sliding door | ||||||
| Width | Depth | Height | |||||
| 3stage | back | KN201B3 | 1φ100V 50/60Hz | refrigerator: 10℃ (Natural convection) |
700 | 500 | 1165 |
| KN301B3 | 900 | 1150 | |||||
| KN401B3 | 1200 | 1150 | |||||
| KN501B3 | 1500 | 1150 | |||||
| front | KN301F3 | 900 | 500 | 1150 | |||
| KN401F3 | 1200 | 1150 | |||||
KA Series
| specification | model | Power | Adjustable temperature range |
OUTSIDE DIMENSIONS(mm) | |||
|---|---|---|---|---|---|---|---|
| shelf | sliding door | ||||||
| Width | Depth | Height | |||||
| 3stage | back | KA301B3 | 1φ100V 50/60Hz | refrigerator: 5℃ (Forced circulation) |
900 | 600 | 1150 |
| KA401B3 | 1200 | 1150 | |||||
| KA501B3 | 1500 | 1150 | |||||
This is an equipment for temporary display of products.
It cannot be running for 24hours. After working-time is over, turn off the power of the equipment and put the products back in the refrigerator.
It cannot be running for 24hours. After working-time is over, turn off the power of the equipment and put the products back in the refrigerator.
